APM settings in Kibanaedit

These settings allow the APM app to function, and specify the data that it surfaces. Unless you’ve customized your setup, you do not need to configure any settings to use the APM app. It is enabled by default.

APM indicesedit

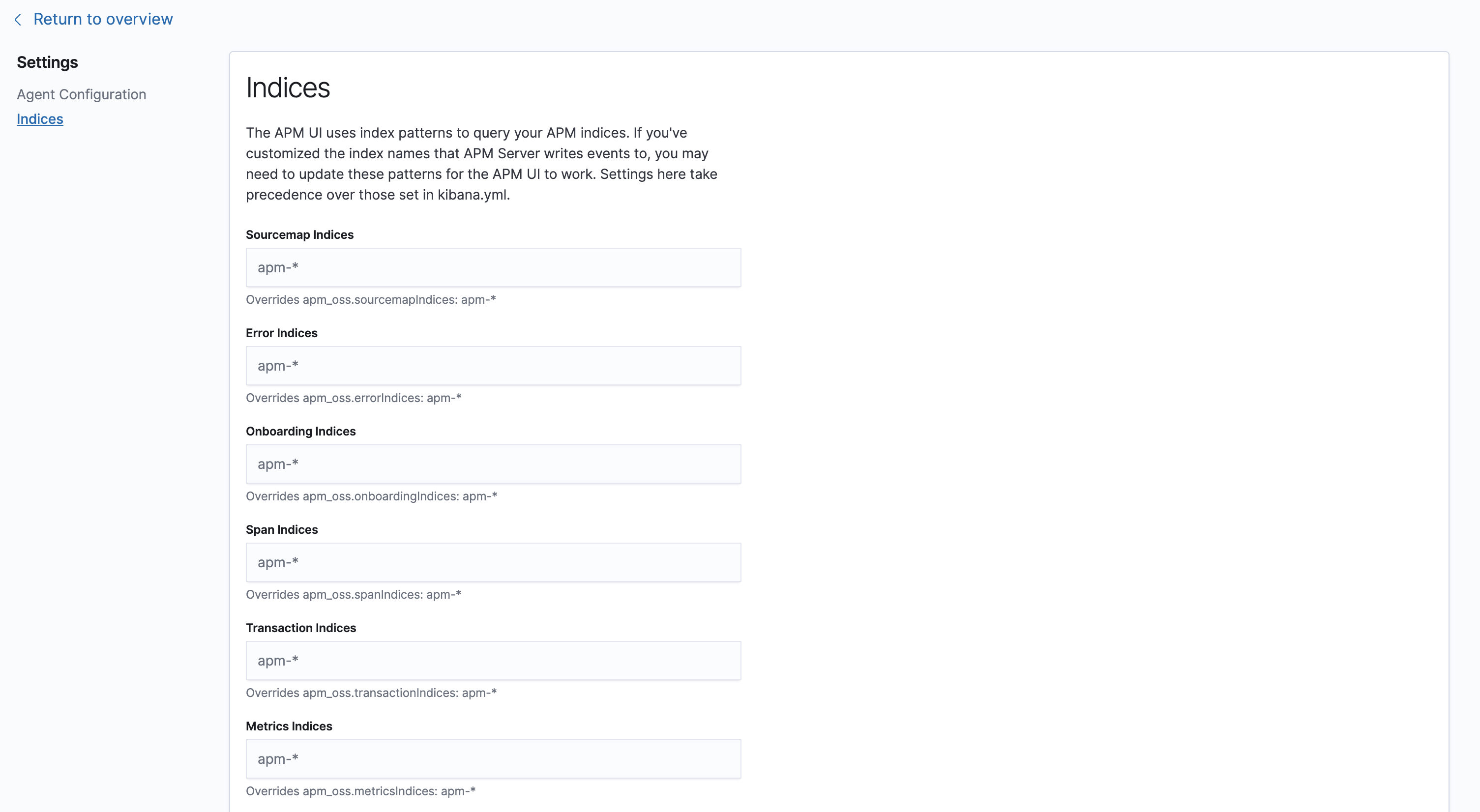

Index defaults can be changed in the APM app. Select Settings > Indices. Index settings in the APM app take precedence over those set in kibana.yml.

APM app settings in Kibana

General APM settingsedit

If you’d like to change any of the default values, copy and paste the relevant settings into your kibana.yml configuration file. Changing these settings may disable features of the APM App.

xpack.apm.enabled logo cloud

[7.16.0] Deprecated in 7.16.0. In 8.0 and later, this setting will no longer be supported. Set to false to disable the APM app. Defaults to true.

xpack.apm.maxServiceEnvironments logo cloud

Maximum number of unique service environments recognized by the UI. Defaults to 100.

xpack.apm.serviceMapFingerprintBucketSize logo cloud

Maximum number of unique transaction combinations sampled for generating service map focused on a specific service. Defaults to 100.

xpack.apm.serviceMapFingerprintGlobalBucketSize logo cloud

Maximum number of unique transaction combinations sampled for generating the global service map. Defaults to 100.

xpack.apm.serviceMapEnabled logo cloud

Set to false to disable service maps. Defaults to true.

xpack.apm.serviceMapTraceIdBucketSize logo cloud

Maximum number of trace IDs sampled for generating service map focused on a specific service. Defaults to 65.

xpack.apm.serviceMapTraceIdGlobalBucketSize logo cloud

Maximum number of trace IDs sampled for generating the global service map. Defaults to 6.

xpack.apm.serviceMapMaxTracesPerRequest logo cloud

Maximum number of traces per request for generating the global service map. Defaults to 50.

xpack.apm.ui.enabled logo cloud

Set to false to hide the APM app from the main menu. Defaults to true.

xpack.apm.ui.transactionGroupBucketSize logo cloud

Number of top transaction groups displayed in the APM app. Defaults to 1000.

xpack.apm.ui.maxTraceItems logo cloud

Maximum number of child items displayed when viewing trace details. Defaults to 1000.

xpack.observability.annotations.index logo cloud

Index name where Observability annotations are stored. Defaults to observability-annotations.

xpack.apm.searchAggregatedTransactions logo cloud

[experimental] This functionality is experimental and may be changed or removed completely in a future release. Elastic will take a best effort approach to fix any issues, but experimental features are not subject to the support SLA of official GA features. Enables Transaction histogram metrics. Defaults to never and aggregated transactions are not used. When set to auto, the UI will use metric indices over transaction indices for transactions if aggregated transactions are found. When set to always, additional configuration in APM Server is required. See Configure transaction metrics for more information.

xpack.apm.metricsInterval logo cloud

Sets a fixed_interval for date histograms in metrics aggregations. Defaults to 30.

xpack.apm.agent.migrations.enabled logo cloud

Set to false to disable cloud APM migrations. Defaults to true.

xpack.apm.indices.error logo cloud

Matcher for all error indices. Defaults to logs-apm*,apm-*.

xpack.apm.indices.onboarding logo cloud

Matcher for all onboarding indices. Defaults to apm-*.

xpack.apm.indices.span logo cloud

Matcher for all span indices. Defaults to traces-apm*,apm-*.

xpack.apm.indices.transaction logo cloud

Matcher for all transaction indices. Defaults to traces-apm*,apm-*.

xpack.apm.indices.metric logo cloud

Matcher for all metrics indices. Defaults to metrics-apm*,apm-*.

xpack.apm.indices.sourcemap logo cloud

Matcher for all source map indices. Defaults to apm-*.
