Query your dataedit

Querying your APM data is an essential tool that can make finding bottlenecks in your code even more straightforward.

Using the query bar, a powerful data query feature, you can pass advanced queries on your data to filter on specific pieces of information you’re interested in.

The query bar comes with a handy autocomplete that helps find the fields and even provides suggestions to the data they include. You can select the query bar and hit the down arrow on your keyboard to begin scanning recommendations.

Querying in the APM appedit

When querying in the APM app, you’re merely searching and selecting data from fields in Elasticsearch documents. Queries entered into the query bar are also added as parameters to the URL, so it’s easy to share a specific query or view with others.

When you type, you can begin to see some of the transaction fields available for filtering:

Example of the Kibana Query bar in APM app in Kibana

To learn more about the Kibana query language capabilities, see the Kibana Query Language Enhancements documentation.

APM app queriesedit

APM queries can be handy for removing noise from your data in the Services, Transactions, Errors, Metrics, and Traces views.

For example, in the Services view, you can quickly view a list of all the instrumented services running on your production environment: service.environment : production. Or filter the list by including the APM agent’s name and the host it’s running on: service.environment : "production" and agent.name : "java" and host.name : "prod-server1".

On the Traces view, you might want to view failed transaction results from any of your running containers: transaction.result :"FAILURE" and container.id : *.

On the Transactions view, you may want to list only the slower transactions than a specified time threshold: transaction.duration.us > 2000000. Or filter the list by including the service version and the Kubernetes pod it’s running on: transaction.duration.us > 2000000 and service.version : "7.12.0" and kubernetes.pod.name : "pod-5468b47f57-pqk2m".

Querying in Discoveredit

Alternatively, you can query your APM documents in Discover. Querying documents in Discover works the same way as queries in the APM app, and Discover supports all of the example APM app queries shown on this page.

Discover queriesedit

One example where you may want to make use of Discover, is to view all transactions for an endpoint instead of just a sample.

Starting in v7.6, you can view ten samples per bucket in the APM app, instead of just one.

Use the APM app to find a transaction name and time bucket that you’re interested in learning more about. Then, switch to Discover and make a search:

processor.event: "transaction" AND transaction.name: "<TRANSACTION_NAME_HERE>" and transaction.duration.us > 13000 and transaction.duration.us < 14000`

In this example, we’re interested in viewing all of the APIRestController#customers transactions that took between 13 and 14 milliseconds. Here’s what Discover returns:

View all transactions in bucket

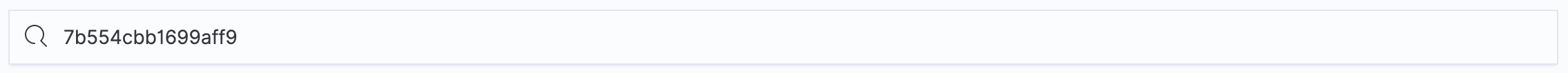

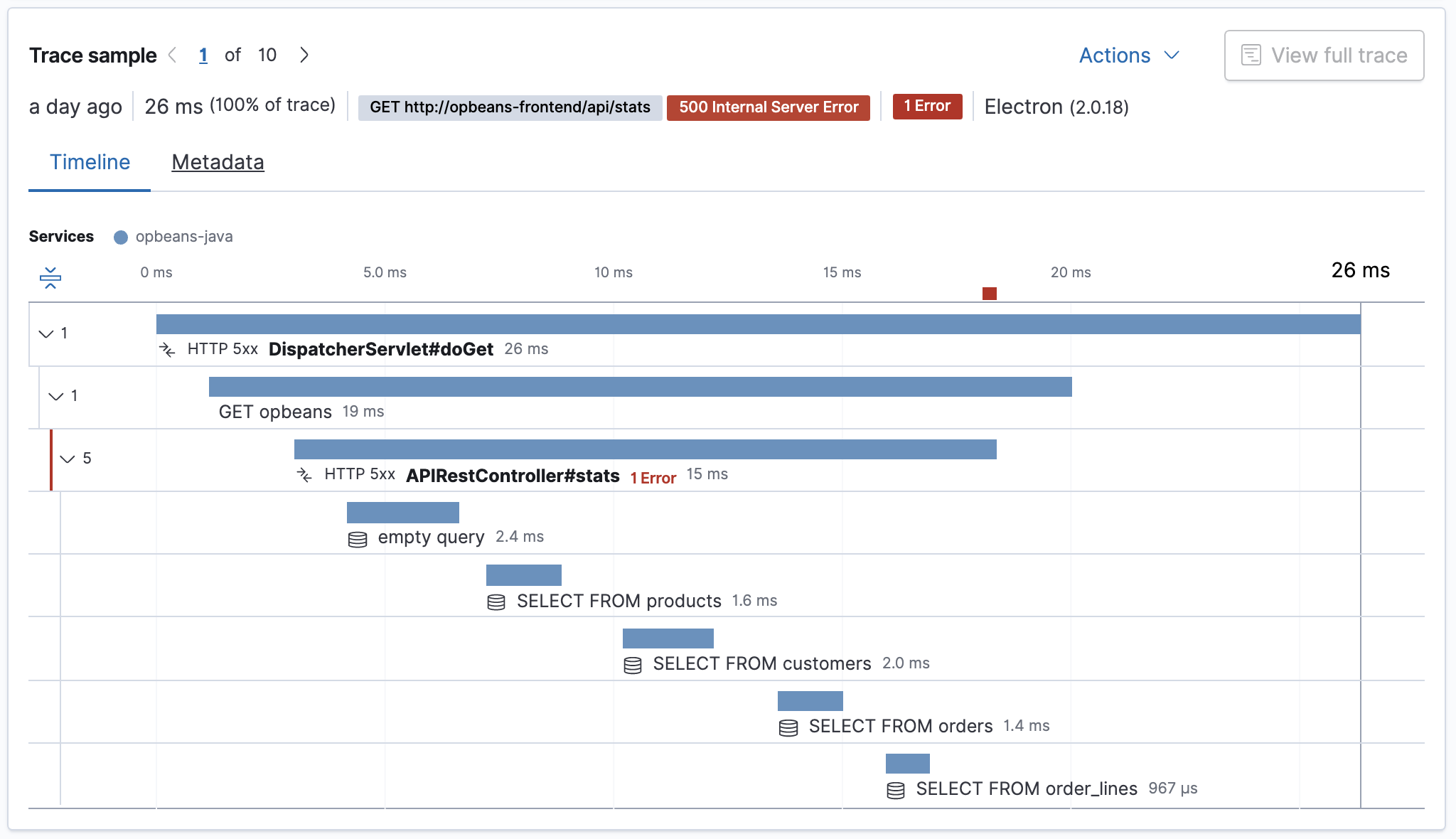

You can now explore the data until you find a specific transaction that you’re interested in. Copy that transaction’s transaction.id, and paste it into the APM app to view the data in the context of the APM app:

View specific transaction in apm app
View specific transaction in apm app
