Jira connector and actionedit

The Jira connector uses the REST API v2 to create Jira issues.

Connector configurationedit

Jira connectors have the following configuration properties.

The name of the connector. The name is used to identify a connector in the Stack Management UI connector listing, and in the connector list when configuring an action.
Jira instance URL.
Project key
Jira project key.
Email (or username)
The account email (or username) for HTTP Basic authentication.
API token (or password)
Jira API authentication token (or password) for HTTP Basic authentication.

Connector networking configurationedit

Use the Action configuration settings to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use xpack.actions.customHostSettings to set per-host configurations.

Preconfigured connector typeedit

   name: preconfigured-jira-connector-type
   actionTypeId: .jira
     apiUrl: https://elastic.atlassian.net
     projectKey: ES
     email: testuser
     apiToken: tokenkeystorevalue

Config defines information for the connector type.

An address that corresponds to URL.
A key that corresponds to Project Key.

Secrets defines sensitive information for the connector type.

A string that corresponds to Email.
A string that corresponds to API Token. Should be stored in the Kibana keystore.

Define connector in Stack Managementedit

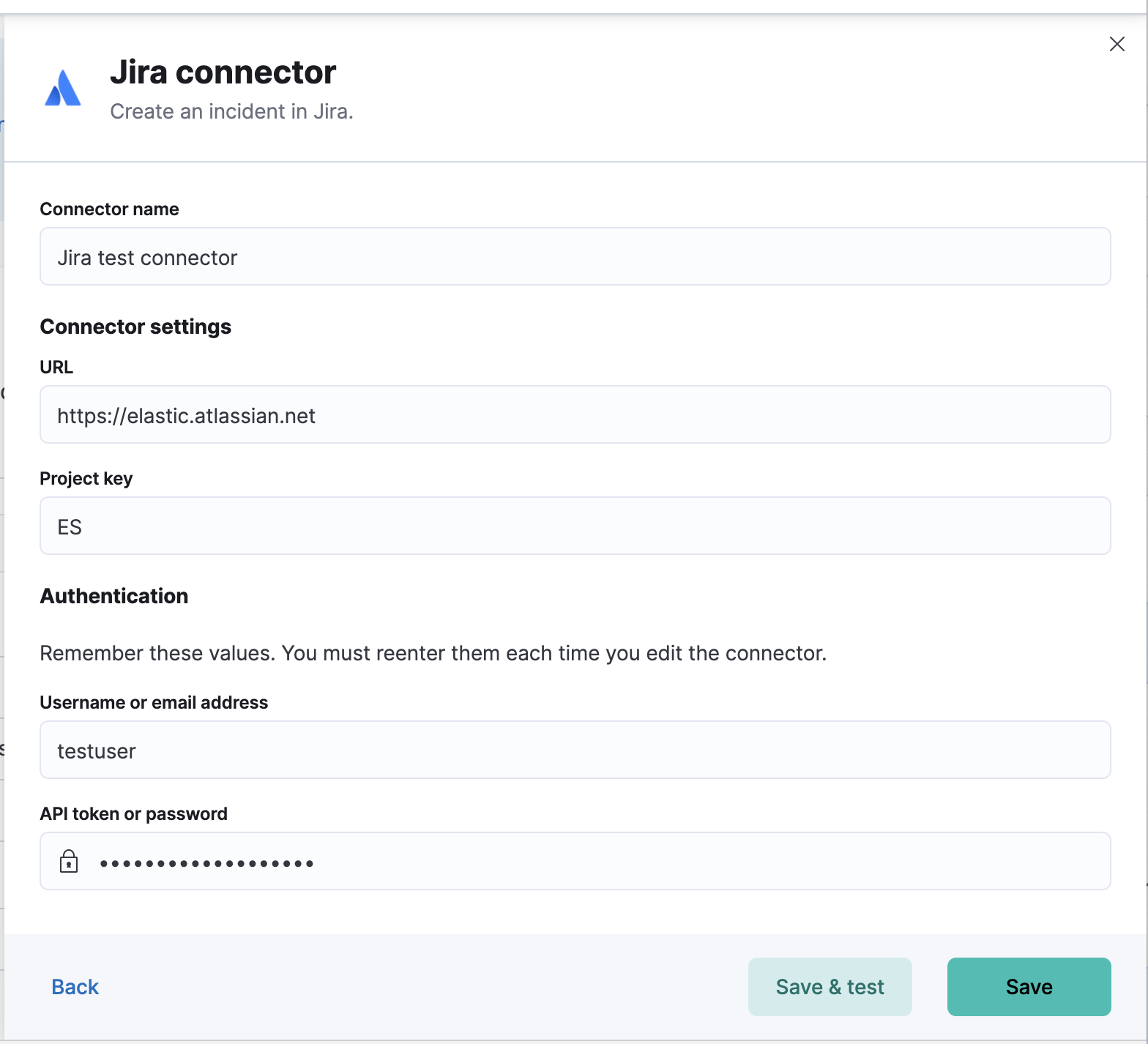

Define Jira connector properties.

Jira connector

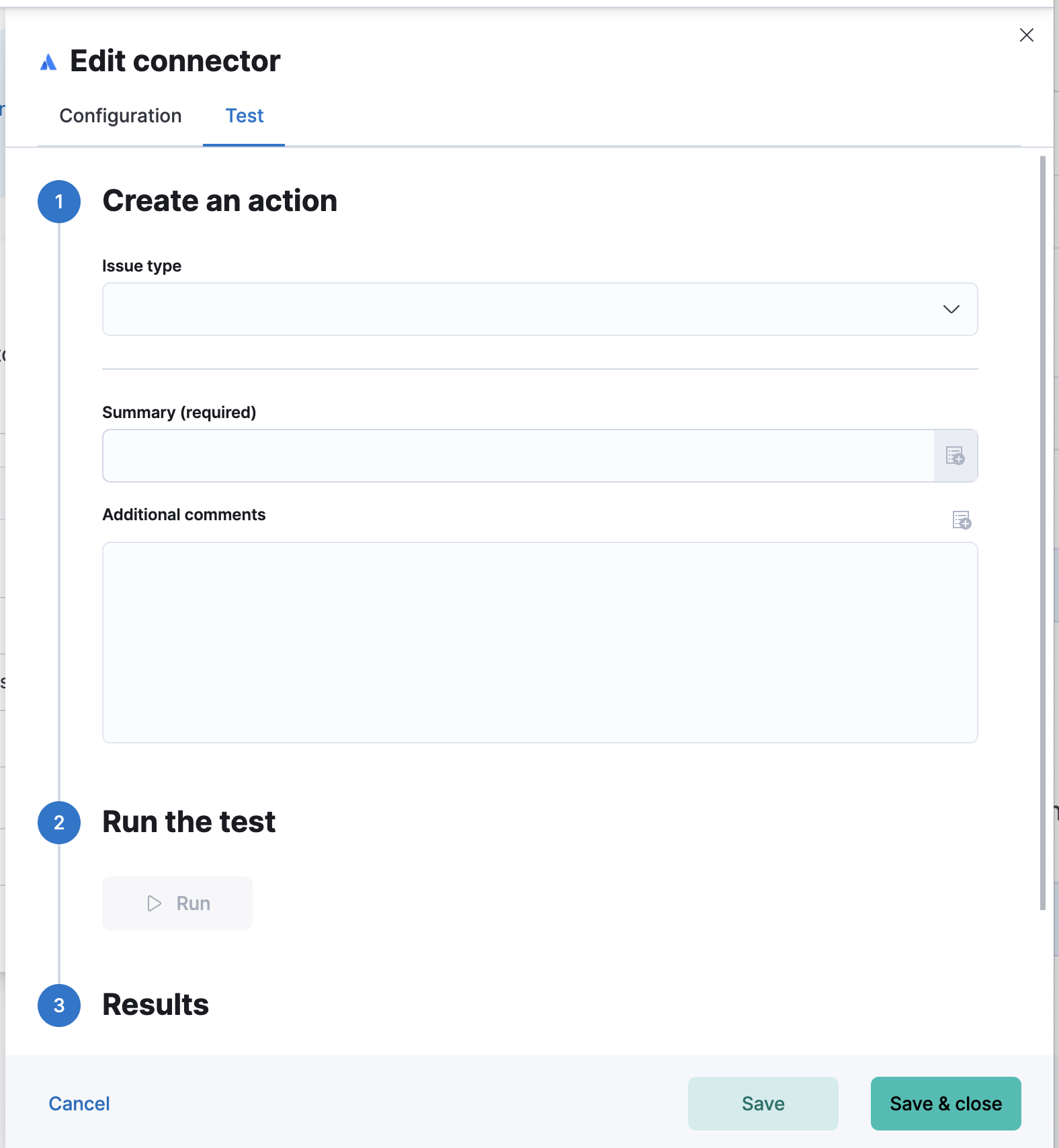

Test Jira action parameters.

Jira params test

Action configurationedit

Jira actions have the following configuration properties.

Issue type
The type of the issue.
The priority of the incident.
The labels for the incident.
A title for the issue, used for searching the contents of the knowledge base.
The details about the incident.
The ID or key of the parent issue. Only for Subtask issue types.
Additional comments
Additional information for the client, such as how to troubleshoot the issue.

Configure Jiraedit

Jira offers free Instances, which you can use to test incidents.
