Adding Input Controlsedit

To start a Controls visualization, open the Visualization application and click the + button. Scroll to the Others section and select Controls.

In the visualization builder, choose the type of control to add to your visualization.

Dropdown menuedit

A dropdown menu allows users to filter content by selecting one or more options from a list. The dropdown menu is dynamically populated with the results of a terms aggregation.

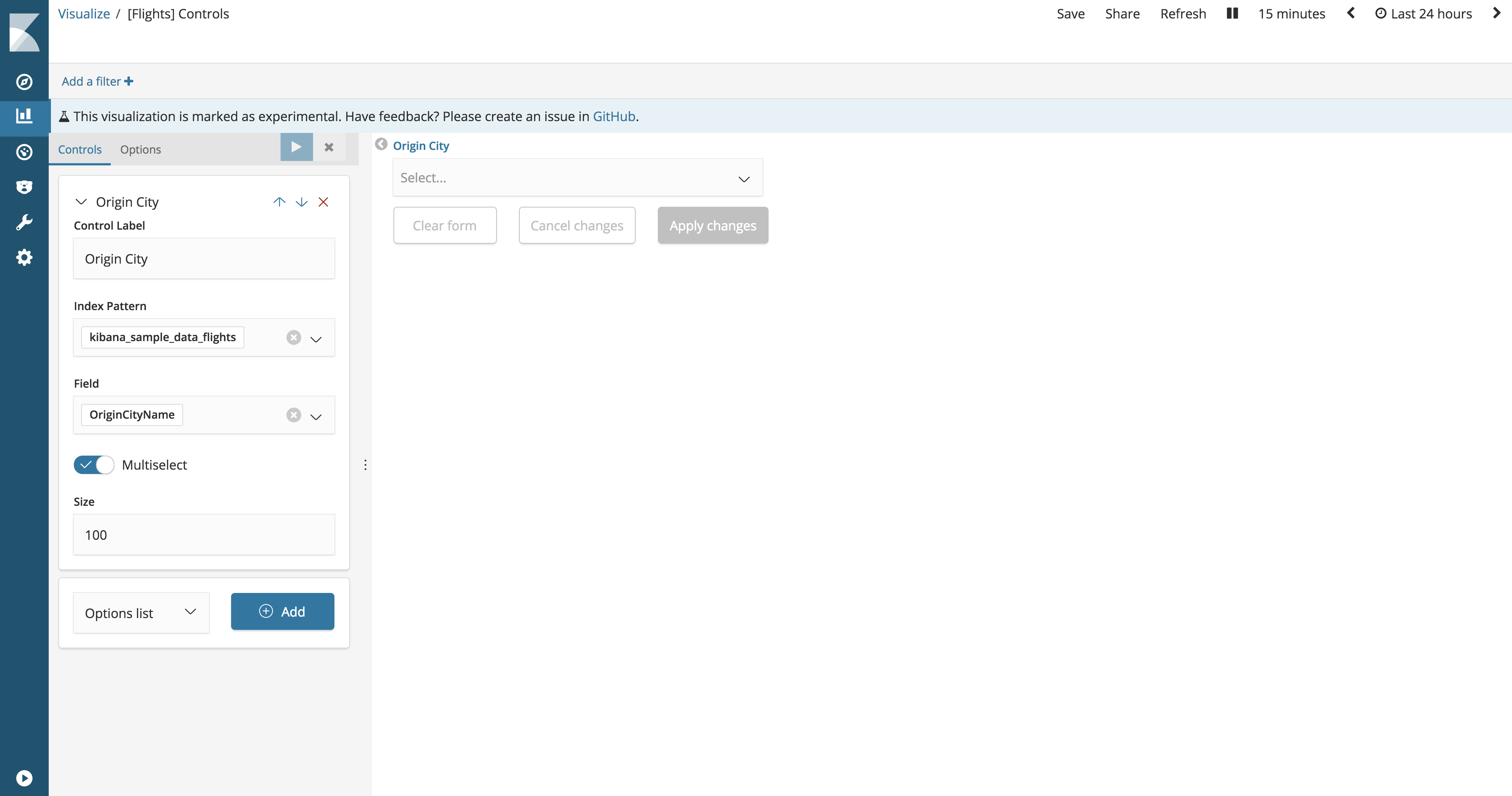

dropdown control editor
Control Label
The label for the dropdown menu. By default, the label is the field name.
Index Pattern
The index pattern that contains the data set to visualize.
Field
The field used to populate the list of options and filter on when users interact with the input. The list of available fields is derived from the specified index pattern.
Parent control
The control for chaining dropdown menus so that the selection in the first menu filters the terms in the second menu. Only available when creating multiple dropdown menus.
Multiselect
When enabled, the dropdown menu allows users to select multiple options.
Size
The number of options to include in the list.

Range slideredit

A range sliders allow users to filter content within a range of numbers. The range slider minimum and maximum values are dynamically populated with the results of a min and max aggregation.

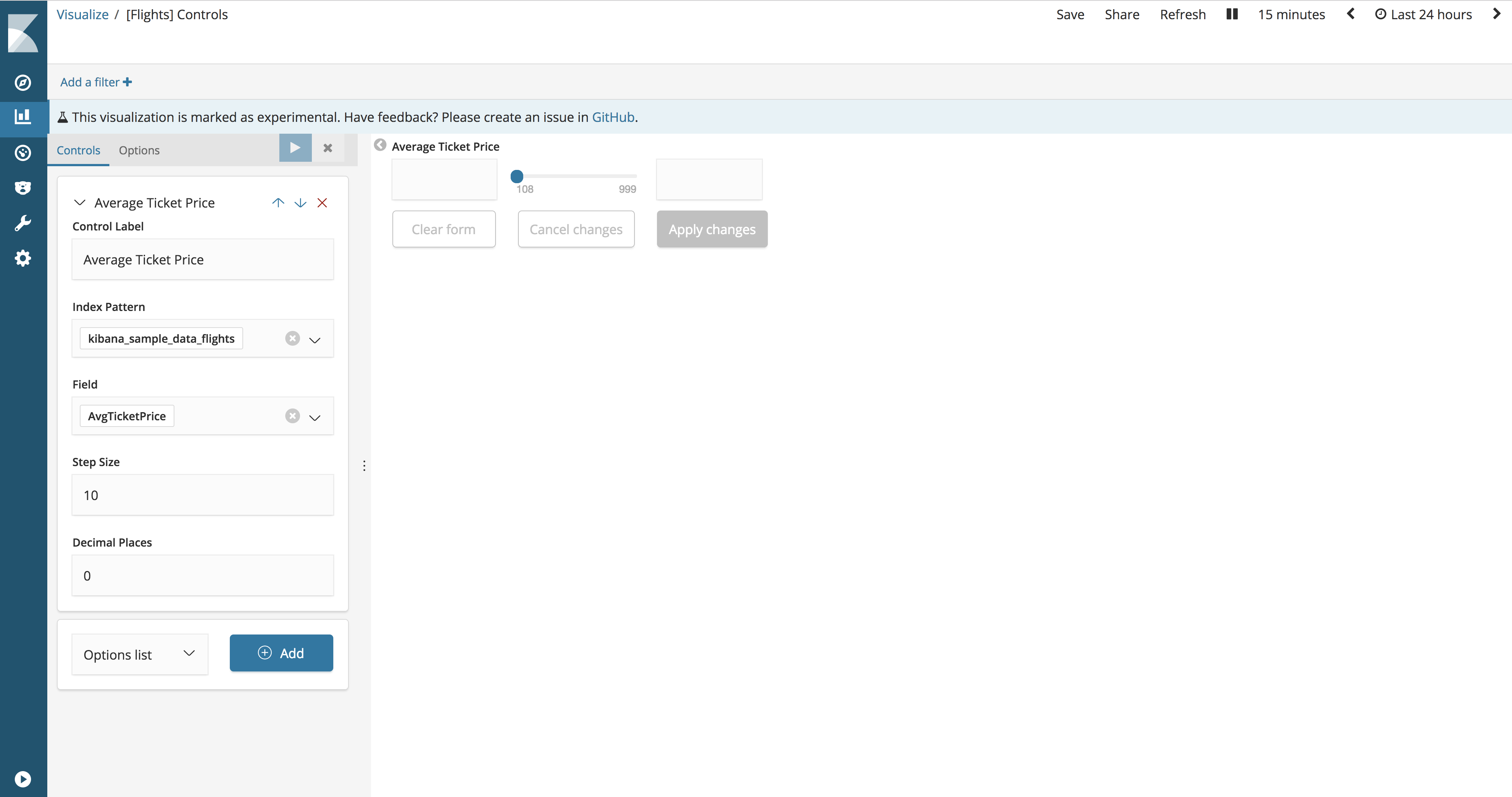

range slider editor
Control Label
The label for the range slider. By default, the label is the field name.
Index Pattern
The index pattern that contains the data set to visualize.
Field
The field used to populate the range slider and filter on when users interact with the input. The list of available fields is derived from the specified index pattern.
Step Size
The increment/decrement size of the slider.
Decimal Places
The number of decimal places.
