Access the Monitoring Application in Kibanaedit

With monitoring enabled for your cluster, you can access the Monitoring (formerly Marvel) application through Kibana. The application is a plugin that runs in Kibana.

To access the Monitoring application:

  1. Open Kibana on the cluster that is receiving monitoring metrics.

    For example, if you have a monitoring and a production cluster, and the production cluster is shipping metrics to the monitoring cluster, then you need to open the Monitoring application on the monitoring cluster to see the metrics.

    If you are not sure where to access Kibana on the cluster, Log into the Cloud UI. on the cluster that is receiving the metrics, and look up the Kibana endpoint URL.

  2. In Kibana, open the Monitoring application:

    • In Kibana 5, click on Monitoring in the sidebar on the left.
    • In Kibana 4.5, first click on the App Switcher icon and then click on the Marvel app icon.

      After you open the application in Kibana, you see a list of the clusters that you are monitoring.

  3. Start exploring the monitoring data:

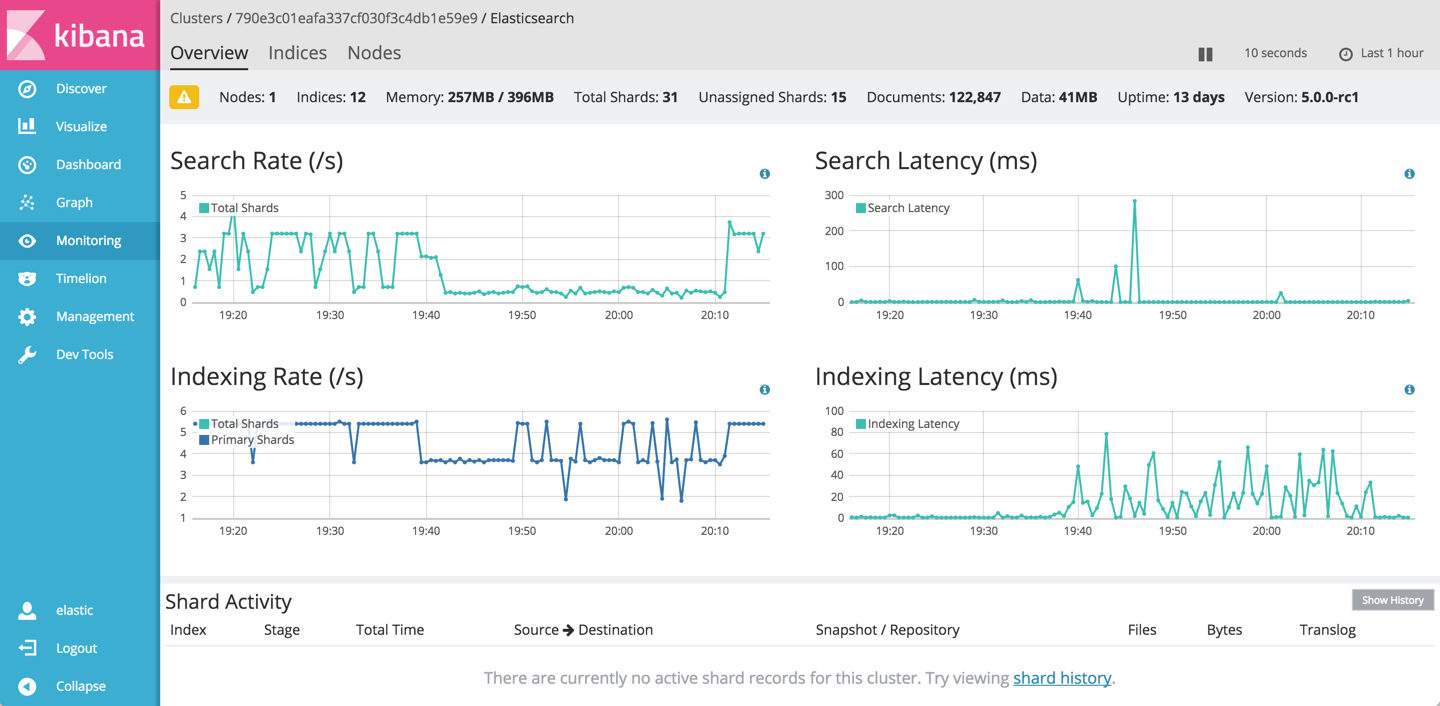

    The Monitoring application for Kibana
    Figure 2. The Monitoring application for Kibana
