AWS sns metricsetedit

This functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.

The sns metricset of aws module allows you to monitor your AWS SNS topic. sns metricset fetches a set of values from Amazon SNS Metrics. CloudWatch metrics for Amazon SNS topics are automatically collected and pushed to CloudWatch every five minutes.

AWS Permissionsedit

Some specific AWS permissions are required for IAM user to collect AWS SNS metrics.

cloudwatch:GetMetricData
cloudwatch:ListMetrics
ec2:DescribeRegions
sns:ListTopics
sts:GetCallerIdentity
iam:ListAccountAliases

Dashboardedit

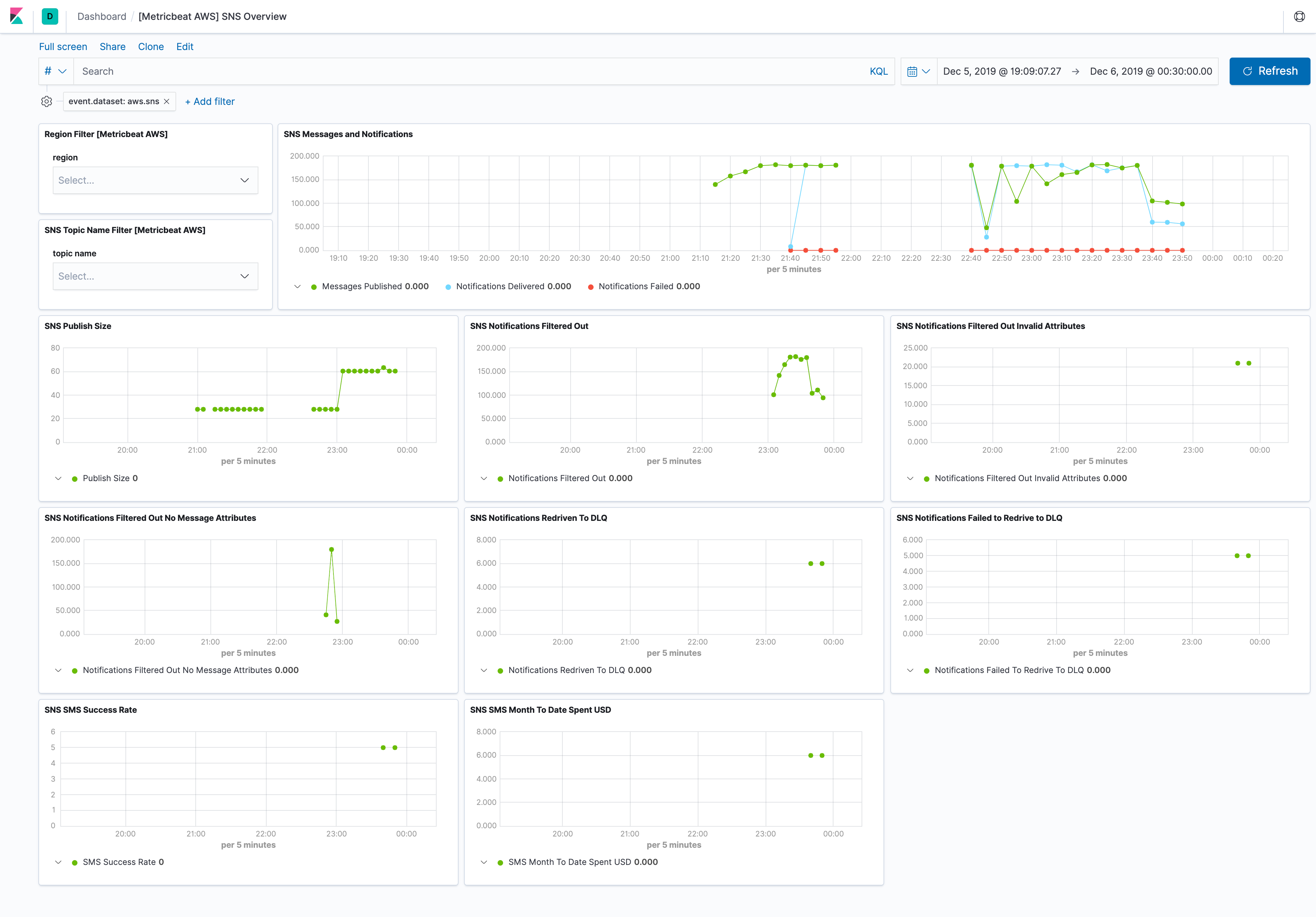

The aws sns metricset comes with a predefined dashboard. For example:

metricbeat aws sns overview

Configuration exampleedit

- module: aws
  period: 300s
  metricsets:
    - sns
  # This module uses the aws cloudwatch metricset, all
  # the options for this metricset are also available here.

Metricsedit

Please see more details for each metric in CloudWatch SNS Metrics.

Metric Name

Statistic Method

NumberOfMessagesPublished

Sum

NumberOfNotificationsDelivered

Sum

NumberOfNotificationsFailed

Sum

NumberOfNotificationsFilteredOut

Sum

NumberOfNotificationsFilteredOut-InvalidAttributes

Sum

NumberOfNotificationsFilteredOut-NoMessageAttributes

Sum

NumberOfNotificationsRedrivenToDlq

Sum

NumberOfNotificationsFailedToRedriveToDlq

Sum

PublishSize

Average

SMSMonthToDateSpentUSD

Sum

SMSSuccessRate

Average

This is a default metricset. If the host module is unconfigured, this metricset is enabled by default.

Fields

For a description of each field in the metricset, see the exported fields section.

Here is an example document generated by this metricset:

{
    "@timestamp": "2017-10-12T08:05:34.853Z",
    "aws": {
        "cloudwatch": {
            "namespace": "AWS/SNS"
        },
        "dimensions": {
            "TopicName": "test-sns-ks"
        },
        "sns": {
            "metrics": {
                "NumberOfMessagesPublished": {
                    "sum": 1
                },
                "NumberOfNotificationsFailed": {
                    "sum": 1
                },
                "PublishSize": {
                    "avg": 5
                }
            }
        },
        "tags": {
            "created-by": "ks"
        }
    },
    "cloud": {
        "account": {
            "id": "428152502467",
            "name": "elastic-beats"
        },
        "provider": "aws",
        "region": "us-east-1"
    },
    "event": {
        "dataset": "aws.sns",
        "duration": 115000,
        "module": "aws"
    },
    "metricset": {
        "name": "sns",
        "period": 10000
    },
    "service": {
        "type": "aws"
    }
}
