ActiveMQ broker metricsetedit

This is the broker metricset of the ActiveMQ module.

The metricset provides metrics describing the monitored ActiveMQ broker, especially connected consumers, producers, memory usage, active connections and exchanged messages.

To collect data, the module communicates with a Jolokia HTTP/REST endpoint that exposes the JMX metrics over HTTP/REST/JSON (JMX key: org.apache.activemq:brokerName=*,type=Broker).

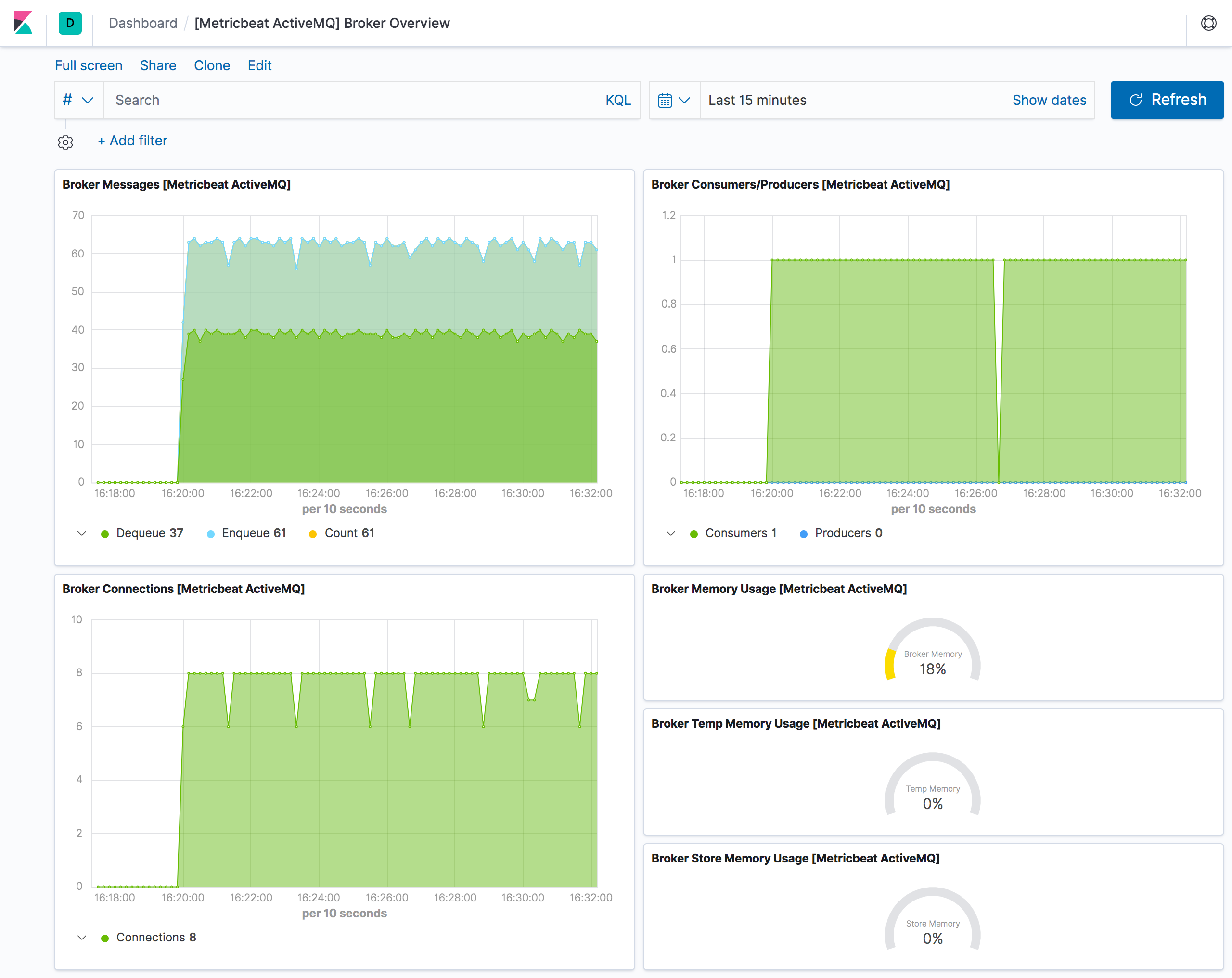

The broker metricset comes with a predefined dashboard:

metricbeat activemq broker overview

This is a default metricset. If the host module is unconfigured, this metricset is enabled by default.

Fieldsedit

For a description of each field in the metricset, see the exported fields section.

Here is an example document generated by this metricset:

{
    "@timestamp": "2019-11-19T13:14:17.425Z",
    "@metadata": {
        "beat": "metricbeat",
        "type": "_doc",
        "version": "8.0.0"
    },
    "event": {
        "duration": 100756657,
        "dataset": "activemq.broker",
        "module": "activemq"
    },
    "metricset": {
        "name": "broker",
        "period": 5000
    },
    "service": {
        "address": "localhost:33051",
        "type": "activemq"
    },
    "activemq": {
        "broker": {
            "mbean": "org.apache.activemq:brokerName=localhost,type=Broker",
            "memory": {
                "store": {
                    "pct": 0
                },
                "temp": {
                    "pct": 0
                },
                "broker": {
                    "pct": 0
                }
            },
            "messages": {
                "dequeue": {
                    "count": 0
                },
                "enqueue": {
                    "count": 1
                },
                "count": 0
            },
            "producers": {
                "count": 0
            },
            "connections": {
                "count": 0
            },
            "consumers": {
                "count": 0
            },
            "name": "localhost"
        }
    },
    "ecs": {
        "version": "1.2.0"
    },
    "host": {
        "name": "macbook.local"
    },
    "agent": {
        "hostname": "macbook.local",
        "id": "8d20f9a9-b24d-419b-97e6-bcccfb64679c",
        "version": "8.0.0",
        "type": "metricbeat",
        "ephemeral_id": "aa9fb858-9b48-4028-a5e6-d46d83982572"
    }
}
