activemq broker metricsetedit
This functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.
This is the broker metricset of the ActiveMQ module.
The metricset provides metrics describing the monitored ActiveMQ broker, especially connected consumers, producers, memory usage, active connections and exchanged messages.
To collect data, the module communicates with a Jolokia HTTP/REST endpoint
that exposes the JMX metrics over HTTP/REST/JSON (JMX key: org.apache.activemq:brokerName=*,type=Broker).

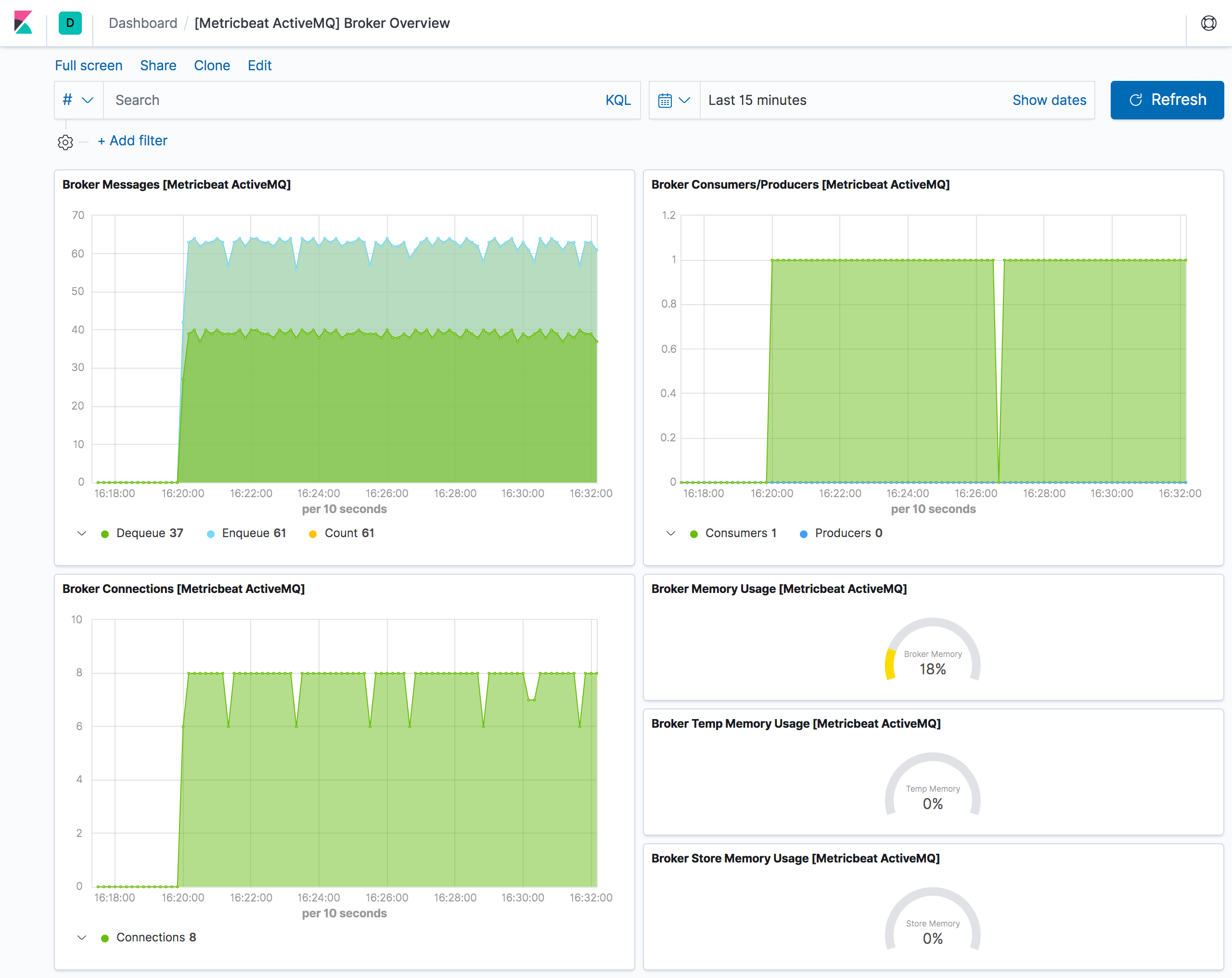

The broker metricset comes with a predefined dashboard:
This is a default metricset. If the host module is unconfigured, this metricset is enabled by default.
Fieldsedit
For a description of each field in the metricset, see the exported fields section.
Here is an example document generated by this metricset:
{
"@timestamp": "2019-11-19T13:14:17.425Z",
"@metadata": {
"beat": "metricbeat",
"type": "_doc",
"version": "8.0.0"
},
"event": {
"duration": 100756657,
"dataset": "activemq.broker",
"module": "activemq"
},
"metricset": {
"name": "broker",
"period": 5000
},
"service": {
"address": "localhost:33051",
"type": "activemq"
},
"activemq": {
"broker": {
"mbean": "org.apache.activemq:brokerName=localhost,type=Broker",
"memory": {
"store": {
"pct": 0
},
"temp": {
"pct": 0
},
"broker": {
"pct": 0
}
},
"messages": {
"dequeue": {
"count": 0
},
"enqueue": {
"count": 1
},
"count": 0
},
"producers": {
"count": 0
},
"connections": {
"count": 0
},
"consumers": {
"count": 0
},
"name": "localhost"
}
},
"ecs": {
"version": "1.2.0"
},
"host": {
"name": "macbook.local"
},
"agent": {
"hostname": "macbook.local",
"id": "8d20f9a9-b24d-419b-97e6-bcccfb64679c",
"version": "8.0.0",
"type": "metricbeat",
"ephemeral_id": "aa9fb858-9b48-4028-a5e6-d46d83982572"
}
}
