Apache moduleedit

This module periodically fetches metrics from Apache HTTPD servers. The default metricset is status.

Compatibilityedit

The Apache metricsets were tested with Apache 2.4.12 and 2.4.20 and are expected to work with all versions >= 2.2.31 and >= 2.4.16.

Dashboardedit

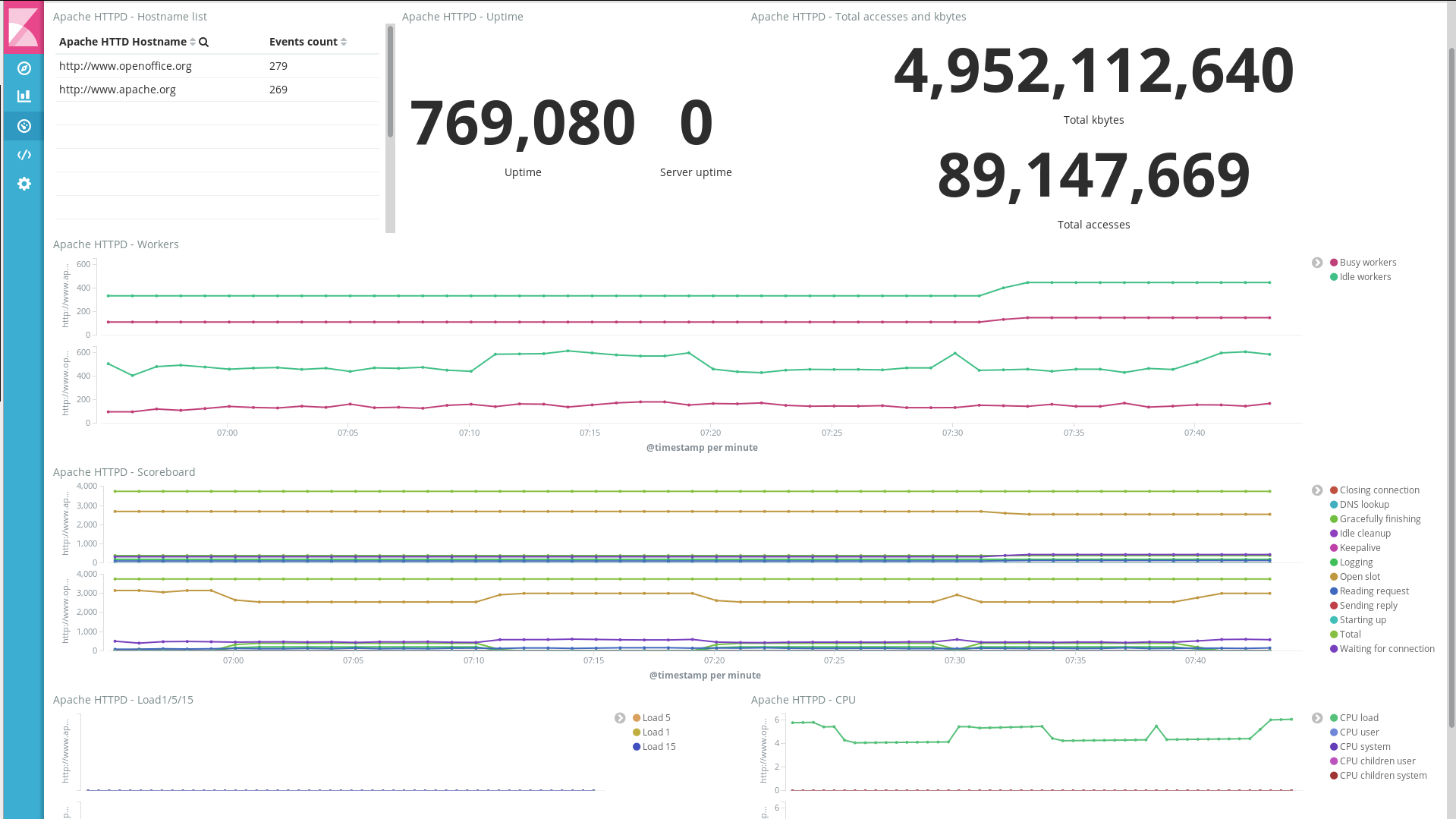

The Apache module comes with a predefined dashboard. For example:

apache httpd server status

Example configurationedit

The Apache module supports the standard configuration options that are described in Modules. Here is an example configuration:

metricbeat.modules:
- module: apache
  metricsets: ["status"]
  period: 10s
  enabled: true

  # Apache hosts
  hosts: ["http://127.0.0.1"]

  # Path to server status. Default server-status
  #server_status_path: "server-status"

  # Username of hosts.  Empty by default
  #username: username

  # Password of hosts. Empty by default
  #password: password

This module supports TLS connections when using ssl config field, as described in SSL. It also supports the options described in Standard HTTP config options.

Metricsetsedit

The following metricsets are available:
