Redis moduleedit

The redis module parses logs and slowlogs created by Redis.

When you run the module, it performs a few tasks under the hood:

  • Sets the default paths to the log files (but don’t worry, you can override the defaults)
  • Makes sure each multiline log event gets sent as a single event
  • Uses ingest node to parse and process the log lines, shaping the data into a structure suitable for visualizing in Kibana
  • Deploys dashboards for visualizing the log data

The redis module has two filesets:

  • The log fileset collects and parses the logs that Redis writes to disk.
  • The slowlog fileset connects to Redis via the network and retrieves the slow logs by using the SLOWLOG command.

For the log fileset, make sure the logfile option, from the Redis configuration file, is set to redis-server.log.

For the slowlog fileset, make sure the slowlog-log-slower-than option, from the Redis configuration file, is set to a lower value than the default one.

Compatibilityedit

The Redis log fileset was tested with logs from Redis versions 1.2.6, 2.4.6, and 3.0.2, so we expect compatibility with any version 1.x, 2.x, or 3.x.

On Windows, the default paths assume that Redis was installed from the Chocolatey repository.

The Redis slowlog fileset was tested with Redis 3.0.2 and 2.4.6. We expect compatibility with any Redis version newer than 2.2.12, when the SLOWLOG command was added.

Set up and run the moduleedit

Before doing these steps, verify that Elasticsearch and Kibana are running and that Elasticsearch is ready to receive data from Filebeat.

If you’re running our hosted Elasticsearch Service on Elastic Cloud, or you’ve enabled security in Elasticsearch and Kibana, you need to specify additional connection information before setting up and running the module. See Quick start: modules for common log formats for the complete setup.

To set up and run the module:

  1. Enable the module:

    deb and rpm:

    filebeat modules enable redis

    mac:

    ./filebeat modules enable redis

    linux:

    ./filebeat modules enable redis

    win:

    PS > .\filebeat.exe modules enable redis

    This command enables the module config defined in the modules.d directory. See Specify which modules to run for other ways to enable modules.

    To see a list of enabled and disabled modules, run:

    deb and rpm:

    filebeat modules list

    mac:

    ./filebeat modules list

    linux:

    ./filebeat modules list

    win:

    PS > .\filebeat.exe modules list
  2. Set up the initial environment:

    deb and rpm:

    filebeat setup -e

    mac:

    ./filebeat setup -e

    linux:

    ./filebeat setup -e

    win:

    PS > .\filebeat.exe setup -e

    The setup command loads the recommended index template for writing to Elasticsearch and deploys the sample dashboards (if available) for visualizing the data in Kibana. This is a one-time setup step.

    The -e flag is optional and sends output to standard error instead of syslog.

    The ingest pipelines used to parse log lines are set up automatically the first time you run the module, assuming the Elasticsearch output is enabled. If you’re sending events to Logstash, or plan to use Beats central management, also see Load ingest pipelines manually.

  3. Run Filebeat.

    If your logs aren’t in the default location, see Configure the moduleedit, then run Filebeat after you’ve set the paths variable.

    deb and rpm:

    service filebeat start

    mac:

    ./filebeat -e

    linux:

    ./filebeat -e

    win:

    PS > Start-Service filebeat

    If the module is configured correctly, you’ll see INFO Harvester started messages for each file specified in the config.

    Note

    Depending on how you’ve installed Filebeat, you might see errors related to file ownership or permissions when you try to run Filebeat modules. See Config File Ownership and Permissions in the Beats Platform Reference for more information.

  4. Explore your data in Kibana:

    1. Open your browser and navigate to the Dashboard overview in Kibana: http://localhost:5601/app/kibana#/dashboards. Replace localhost with the name of the Kibana host. If you’re using an Elastic Cloud instance, log in to your cloud account, then navigate to the Kibana endpoint in your deployment.
    2. If necessary, log in with your Kibana username and password.
    3. Enter the module name in the search box, then open a dashboard and explore the visualizations for your parsed logs.

      Tip

      If you don’t see data in Kibana, try changing the date range to a larger range. By default, Kibana shows the last 15 minutes.

Example dashboardedit

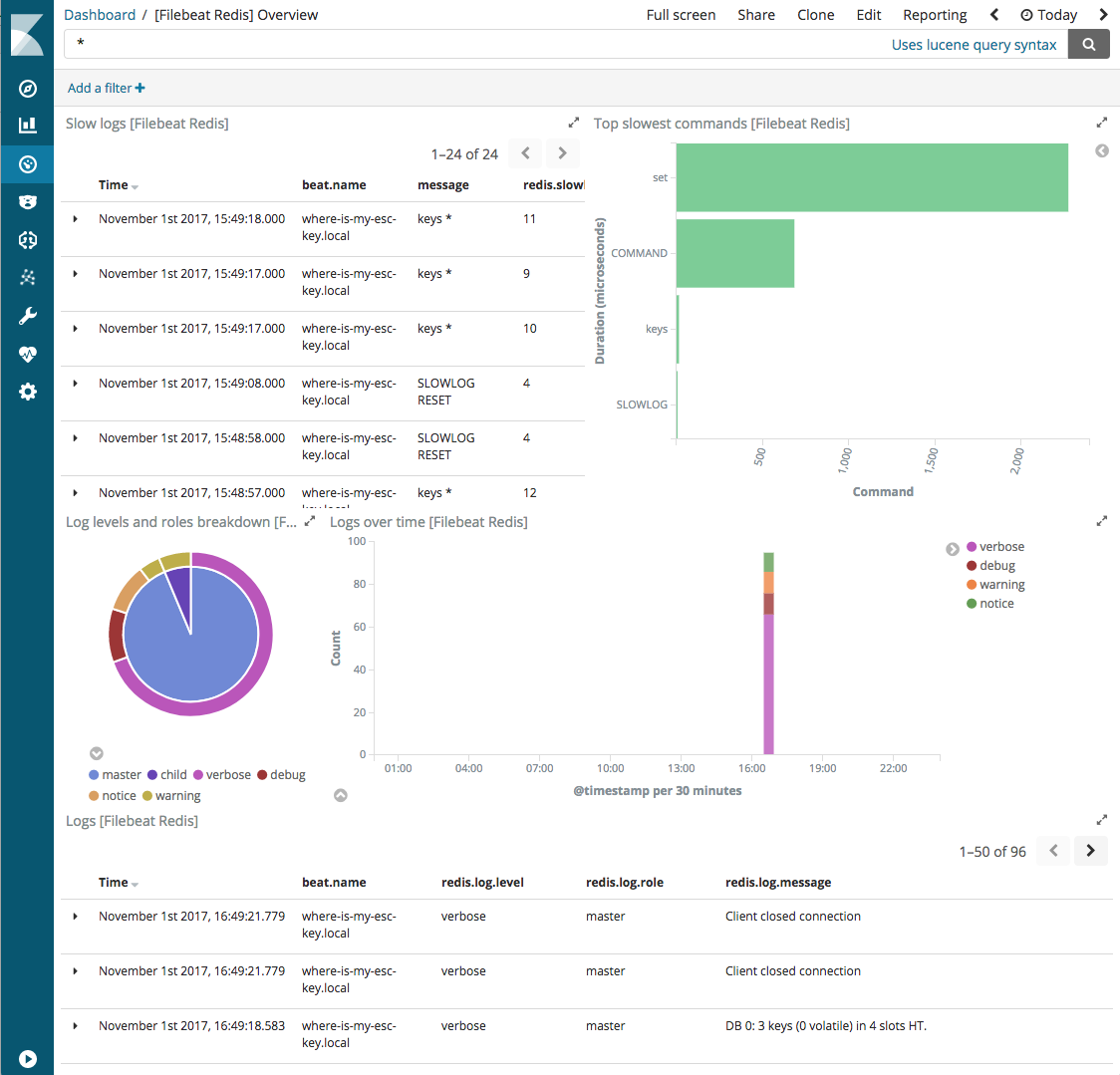

This module comes with a sample dashboard. For example:

./images/kibana-redis.png

Configure the moduleedit

You can further refine the behavior of the redis module by specifying variable settings in the modules.d/redis.yml file, or overriding settings at the command line.

The following example shows how to set paths in the modules.d/redis.yml file to override the default paths for Redis logs. It also shows how to set the host and password to retrieve slow logs:

- module: redis
  log:
    enabled: true
    var.paths: ["/path/to/log/redis/redis-server.log*"]
  slowlog:
    enabled: true
    var.hosts: ["localhost:6378"]
    var.password: "YOUR_PASSWORD"

To specify the same settings at the command line, you use:

-M "redis.log.var.paths=[/path/to/log/redis/redis-server.log*]" -M "redis.slowlog.var.hosts=[localhost:6378]" -M "redis.slowlog.var.password=[YOUR_PASSWORD]"

Variable settingsedit

Each fileset has separate variable settings for configuring the behavior of the module. If you don’t specify variable settings, the redis module uses the defaults.

For more information, see Specify variable settings. Also see Advanced settings.

Tip

When you specify a setting at the command line, remember to prefix the setting with the module name, for example, redis.log.var.paths instead of log.var.paths.

log fileset settingsedit

var.paths
An array of paths that specify where to look for the log files. If left empty, Filebeat will choose the paths depending on your operating systems.

slowlog fileset settingsedit

var.hosts
An array of hosts to which Filebeat should connect to retrieve the slow logs. If left empty, localhost:6379 is assumed.
var.password
The password to use to connect to Redis, in case Redis authentication is enabled (the requirepass option in the Redis configuration).

Fieldsedit

For a description of each field in the module, see the exported fields section.
