Collecting JMX metrics with OpenTelemetry can be done in two main ways depending on your environment, requirements and constraints:

• from inside the JVM with the OpenTelemetry Instrumentation Java agent (or EDOT Java)
• from outside the JVM with the jmx-scraper.

Thorough this article, we will use the term "Java agent" to refer to the OpenTelemetry Java instrumentation agent, this also applies to the Elastic own distribution (EDOT Java) which is based on it and provides the same features.

This walkthrough uses a Tomcat server as the target and shows how to validate which metrics are emitted with the logging exporter.

The configuration examples in this article use Java system properties that must be passed using -D flags in the JVM startup command, equivalent environment variables can also be used for configuration.

Prerequisites

• A local Tomcat install (or any JVM app you can start with custom JVM flags)
• Java 8+ on the host, the Tomcat version used might require a more recent version though.
• An OpenTelemetry Collector endpoint if you want to ship metrics beyond local logging

Choosing between the Java agent and jmx-scraper

Use the Java agent (or EDOT Java) when you can modify JVM startup flags and want in-process collection with full context from the running application: this allows to capture traces, logs and metrics with a single tool deployment.

Use jmx-scraper when you cannot install an agent on the JVM or prefer out-of-process collection from a separate host. This requires the JVM and the network to be configured for remote JMX access and also dealing with authentication and credentials.

Both approaches rely on the same JMX metric mappings and can use the logging exporter for validation and then use OTLP to send metrics to the collector / an OTLP endpoint.

Option 1: Collect JMX metrics inside the JVM with the Java agent

OpenTelemetry Java instrumentation ships with a curated set of JMX metric mappings. For Tomcat, you just need to enable the Java agent and set otel.jmx.target.system=tomcat.

Step 1 - Download the OpenTelemetry Java agent

The agent is downloaded in /opt/otel but you can choose any location on the host. Make sure the path is consistent with the -javaagent flag in the next step.

mkdir -p /opt/otel
curl -L -o /opt/otel/opentelemetry-javaagent.jar \
  https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar

Step 2 - Configure Tomcat with bin/setenv.sh

Create or update bin/setenv.sh so Tomcat launches with the agent and JMX target system enabled.

#!/bin/bash
export CATALINA_OPTS="$CATALINA_OPTS \
  -javaagent:/opt/otel/opentelemetry-javaagent.jar \
  -Dotel.service.name=tomcat-demo \
  -Dotel.metrics.exporter=otlp,logging \
  -Dotel.jmx.target.system=tomcat"

This will configure the agent to log metrics (using the logging exporter) in addition to sending them to the Collector.

Step 3 - Validate the emitted metrics

Start Tomcat and watch stdout.

./bin/catalina.sh run

By defaults metrics are sampled and emitted every minute, so you might have to wait a bit for the metrics to be logged. If needed, you can use otel.metric.export.interval configuration to increase or reduce the frequency.

You should see logging exporter output with JVM and Tomcat metrics. Look for lines containing the LoggingMetricExporter class name.

INFO io.opentelemetry.exporter.logging.LoggingMetricExporter - MetricData{name=tomcat.threadpool.currentThreadsBusy, ...}
INFO io.opentelemetry.exporter.logging.LoggingMetricExporter - MetricData{name=jvm.memory.used, ...}

Step 4 - Send metrics to a Collector

Once metric capture is validated, you should be ready to send metrics to a collector.

You will have to:

• remove the logging exporter as it's no longer necessary for production
• configure the OTLP endpoint (otel.exporter.otlp.endpoint) and headers (otel.exporter.otlp.headers) if needed

The bin/setenv.sh file should be modified to look like this:

#!/bin/bash
export CATALINA_OPTS="$CATALINA_OPTS \
  -javaagent:/opt/otel/opentelemetry-javaagent.jar \
  -Dotel.service.name=tomcat-demo \
  -Dotel.jmx.target.system=tomcat \
  -Dotel.exporter.otlp.endpoint=https://your-collector:4317 \
  -Dotel.exporter.otlp.headers=Authorization=Bearer <your-token>"

When using the Java agent, the JVM metrics are automatically captured by the runtime-telemetry module, it is thus not necessary to include jvm in the otel.jmx.target.system configuration option.

Option 2: Collect JMX metrics from outside the JVM with jmx-scraper

When you cannot install an agent in the JVM or if only metrics are required, jmx-scraper lets you query JMX remotely and export metrics to an OTLP endpoint.

Step 1 - Enable remote JMX on Tomcat

Add JMX remote options to bin/setenv.sh and create access/password files.

Warning: This uses trivial credentials and disables SSL. Do not use this configuration in production.

mkdir -p /opt/jmx
cat <<EOF > ${CATALINA_HOME}/jmxremote.access
monitorRole readonly
EOF

cat <<EOF > ${CATALINA_HOME}/jmxremote.password
monitorRole monitorPass
EOF

chmod 600 ${CATALINA_HOME}/jmxremote.password

export CATALINA_OPTS="$CATALINA_OPTS \
  -Dcom.sun.management.jmxremote \
  -Dcom.sun.management.jmxremote.port=9010 \
  -Dcom.sun.management.jmxremote.rmi.port=9010 \
  -Dcom.sun.management.jmxremote.authenticate=true \
  -Dcom.sun.management.jmxremote.ssl=false \
  -Dcom.sun.management.jmxremote.access.file=${CATALINA_HOME}/jmxremote.access \
  -Dcom.sun.management.jmxremote.password.file=${CATALINA_HOME}/jmxremote.password \
  -Djava.rmi.server.hostname=127.0.0.1"

Step 2 - Download jmx-scraper

The jmx-scraper is downloaded in /opt/otel but you can choose any location on the host.

mkdir -p /opt/otel
curl -L -o /opt/otel/opentelemetry-jmx-scraper.jar \
  https://github.com/open-telemetry/opentelemetry-java-contrib/releases/latest/download/opentelemetry-jmx-scraper.jar

Step 3 - Check the JMX connection

Run jmx-scraper with credentials from previous step to confirm it can reach Tomcat. If the credentials are wrong, you will see authentication errors.

java -jar /opt/otel/opentelemetry-jmx-scraper.jar \
  -Dotel.jmx.service.url=service:jmx:rmi:///jndi/rmi://localhost:9010/jmxrmi
  -Dotel.jmx.username=monitorRole \
  -Dotel.jmx.password=monitorPass \
  -Dotel.jmx.target.system=tomcat \
  -test

You should get in the standard output:

• JMX connection test OK if the connection and authentication is successful
• JMX connection test ERROR otherwise

Step 4 - Validate the emitted metrics

Using the logging exporter allows to inspect metrics and attributes before sending them to a collector.

In order to capture both Tomcat and JVM metrics, it is required to set otel.jmx.target.system to tomcat,jvm.

java -jar /opt/otel/opentelemetry-jmx-scraper.jar \
  -Dotel.jmx.service.url=service:jmx:rmi:///jndi/rmi://localhost:9010/jmxrmi
  -Dotel.jmx.username=monitorRole \
  -Dotel.jmx.password=monitorPass \
  -Dotel.jmx.target.system=tomcat,jvm \
  -Dotel.metrics.exporter=logging

Step 5 - Send metrics to a Collector

After validation, to send metrics to an OTLP endpoint, you will have to:

• remove the -Dotel.metrics.exporter to restore the otlp default value.
• configure the OTLP endpoint (otel.exporter.otlp.endpoint) and headers (otel.exporter.otlp.headers) if needed

java -jar /opt/otel/opentelemetry-jmx-scraper.jar \
  -Dotel.jmx.service.url=service:jmx:rmi:///jndi/rmi://localhost:9010/jmxrmi
  -Dotel.jmx.username=monitorRole \
  -Dotel.jmx.password=monitorPass \
  -Dotel.jmx.target.system=tomcat,jvm \
  -Dotel.exporter.otlp.endpoint=https://your-collector:4317
  -Dotel.exporter.otlp.headers="Authorization=Bearer <your-token>"

Customizing the JMX Metrics Collection

Once the built-in Tomcat and JVM mappings are flowing, you can add custom rules with otel.jmx.config. Create a YAML file and pass its path alongside otel.jmx.target.system.

For example, the following custom.yaml file allows to capture the custom.jvm.thread.count metric from the java.lang:type=Threading MBean:

---
rules:
  - bean: "java.lang:type=Threading"
    mapping:
      ThreadCount:
        metric: custom.jvm.thread.count
        type: gauge
        unit: "{thread}"
        desc: Current number of live threads.

For complete reference on the configuration format and syntax, refer to jmx-metrics module in Opentelemetry Java instrumentation.

This custom configuration can be used both with jmx-scraper and Java agent, both support the otel.jmx.config configuration option, for example with jmx-scraper:

java -jar /opt/otel/opentelemetry-jmx-scraper.jar \
  -Dotel.jmx.service.url=service:jmx:rmi:///jndi/rmi://localhost:9010/jmxrmi
  -Dotel.jmx.username=monitorRole \
  -Dotel.jmx.password=monitorPass \
  -Dotel.jmx.target.system=tomcat,jvm \
  otel.jmx.config=/opt/otel/jmx/custom.yaml

You can pass multiple custom files as a comma-separated list to otel.jmx.config when you need to organize metrics by team or component.

Using the JMX Metrics in Kibana

Once you have collected the JMX metrics using one of the approaches described in this article, you can start using them in Kibana. You can build custom dashboards and visualizations to explore and analyze the metrics, create custom alerts on top of them or build MCP tools and AI Agents to use them in your agentic workflows.

Here is an example of how you can use the JMX metrics in Kibana through ES|QL:

TS metrics*
| WHERE telemetry.sdk.language == "java"
| WHERE service.name == ?instance
| STATS
    request_rate = SUM(RATE(tomcat.request.count))
  BY Time = BUCKET(@timestamp, 100, ?_tstart, ?_tend)

You can use the native metric and dimension names of the JMX metrics to build your queries. With the TS command you get first-class support for time series aggregation functions and dimensions on your metrics. This kind of queries constitute the building blocks for your dashboards, alerts, workflows and AI agent tools.

Here is an example of a dashboard that visualizes the typical JMX metrics for Apache Tomcat:

Conclusion

In this article, we have seen how to collect JMX metrics with OpenTelemetry using the Java agent or jmx-scraper. We have also seen how to use the JMX metrics in Kibana through ES|QL to build custom dashboards, alerts, workflows and AI agent tools.

This is just the beginning of what you can do with the JMX metrics and Elastic Observability. Try it out yourself and explore the full potential of your JMX metrics when combined with powerful features provided by the Elastic Observability platform.

Over the past year, Elastic has made several notable contributions to the OpenTelemetry ecosystem. We donated our Elastic Common Schema (ECS) to OpenTelemetry, successfully integrated the eBPF-based profiling agent, and have consistently been one of the top contributing companies across the OpenTelemetry project. Additionally, Elastic has significantly improved upstream logging capabilities within OpenTelemetry with enhancements to key areas such as container logging, further enhancing the framework’s robustness.

These efforts demonstrate our strategic focus on enhancing and expanding the capabilities of OpenTelemetry for the broader observability community and reinforce the vendor-agnostic benefits of using OpenTelemetry.

Today, we are thrilled to announce the technical preview of the Elastic Distribution of OpenTelemetry Collector. This new offering underscores Elastic’s dedication to this important framework and highlights our ongoing contributions to make OpenTelemetry the best vendor agnostic data collection framework.

Elastic Agent as an OpenTelemetry Collector<a id="elastic-agent-as-an-opentelemetry-collector"></a>

Technically, the Elastic Distribution of OpenTelemetry Collector represents an evolution of the Elastic Agent. In its latest version, the Elastic Agent can operate in an OpenTelemetry mode. This mode invokes a module within the Elastic Agent which is essentially a distribution of the OpenTelemetry collector. It is crafted using a selection of upstream components from the contrib distribution.

The Elastic OpenTelemetry Collector also includes configuration for this set of upstream OpenTelemetry Collector components, providing out-of-the-box functionality with Elastic Observability. This integration allows users to seamlessly utilize Elastic’s advanced observability features with minimal setup.

The technical preview version of the Elastic OpenTelemetry Collector has been tailored with out-of-the-box configurations for the below use cases, we will keep working to add more as we progress: :

• Collect and ship logs: Use the Elastic OpenTelemetry Collector to gather log data from various sources and ship it directly to Elastic where it can be analyzed in Kibana Discover, and Elastic Observability’s Explorer (also in Tech Preview in 8.15).

• Assess host health: Leverage the OpenTelemetry host metrics and Kubernetes receivers to monitor to evaluate the performance of hosts and pods. This data can then be visualized and analyzed in Elastic’s Infrastructure Observability UIs, providing deep insights into host performance and health. Details of how this is configured in the OTel collector is outlined in this blog.

• Kubernetes container logs: Additionally, users of the Elastic OpenTelemetry Collector benefit from out-of-the-box Kubernetes container and application logs enriched with Kubernetes metadata by leveraging the powerful container log parser Elastic recently contributed to OTel. This OpenTelemetry-based enrichment enhances the context and value of the collected logs, providing deeper insights and more effective troubleshooting capabilities.

While the Elastic OpenTelemetry Collector comes pre-built and preconfigured for the sake of easier onboarding and getting started experience, Elastic is committed to the vision of vendor-neutral collection of data. Thus, we strive to contribute any Elastic specific features back to the upstream OpenTelemetry components, to advance and help grow the OpenTelemetry landscape and capabilities.

Stay tuned for upcoming announcements sharing our plans to combine the best of Elastic Agent and OpenTelemetry Collector.

Get started the Elastic Distribution of OpenTelemetry Collector<a id="get-started-the-elastic-distribution-for-opentelemetry-collector"></a>

To get started with a guided onboarding flow for the Elastic Distribution of the OpenTelemetry Collector for Kubernetes, Linux, and Mac environments, visit the guided onboarding documentation.

For more advanced manual configuration, follow the manual configuration instructions.

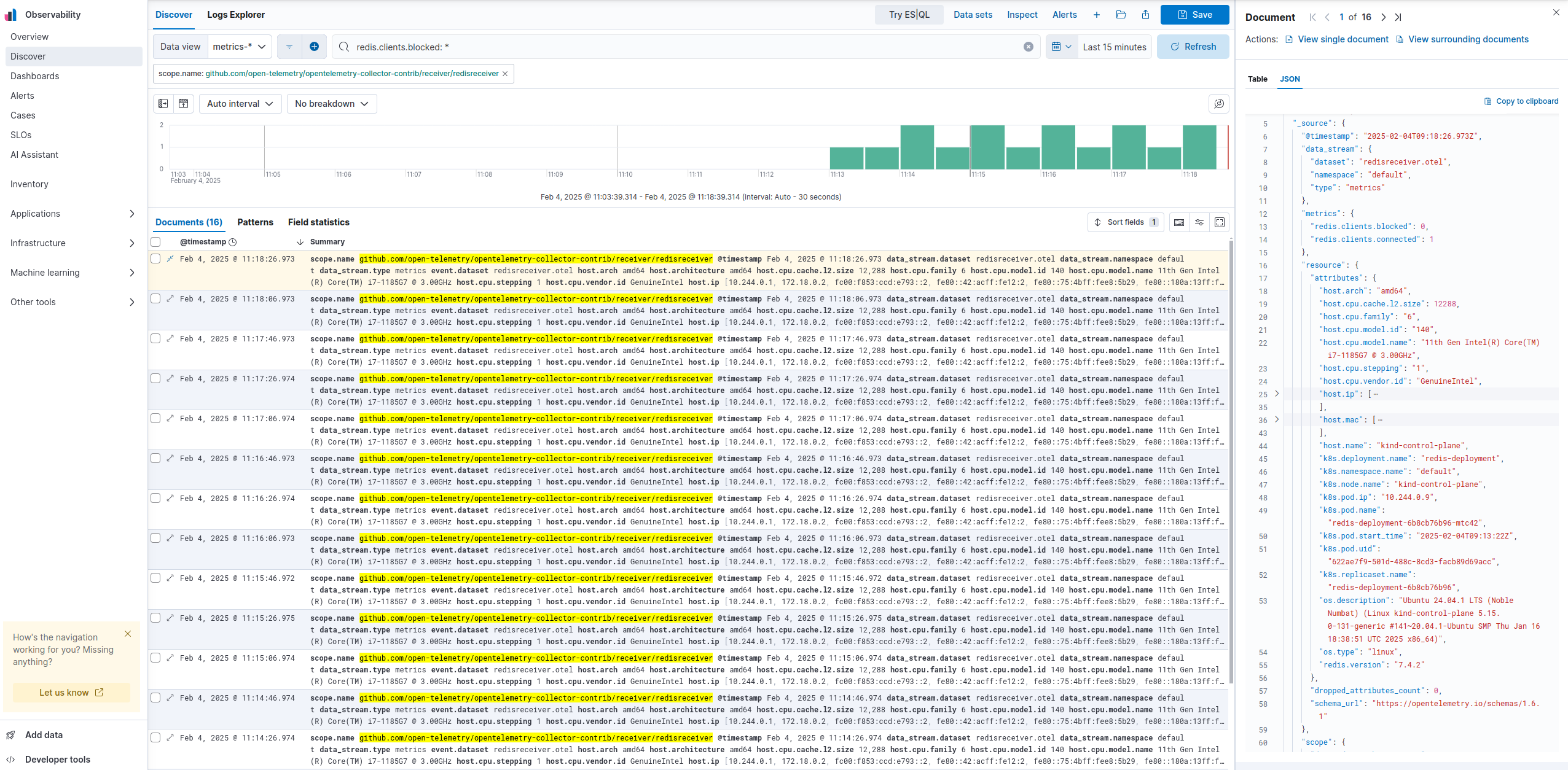

Once the Elastic Distribution of the OpenTelemetry Collector is set up and running, you’ll be able to analyze your systems within various features of the Elastic Observability solution.

Analyze the performance and health of your infrastructure, through corresponding metrics and logs collected through OpenTelemetry Collector receivers, such as the host metrics receiver and different Kubernetes receivers.

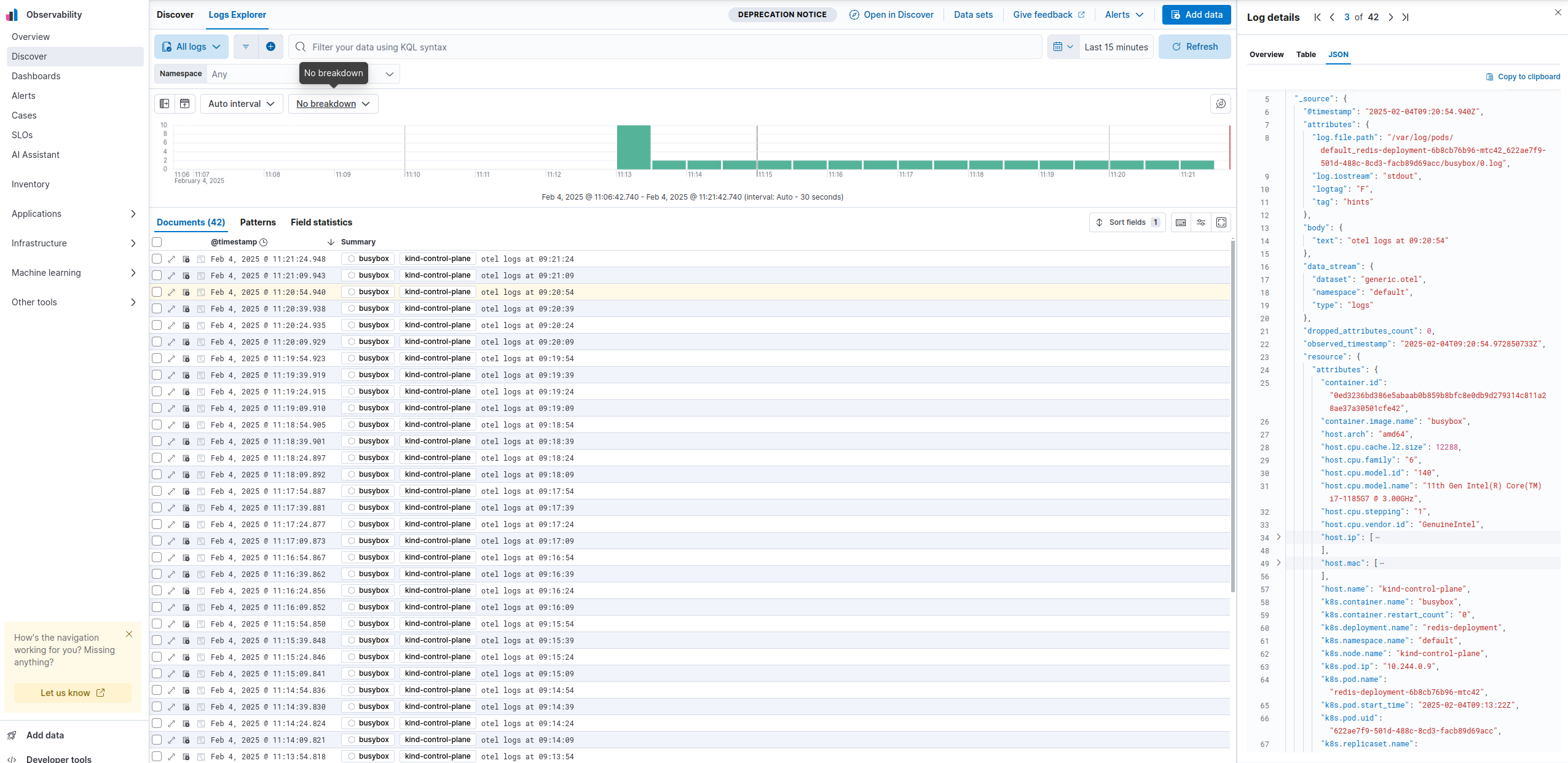

With Elastic OpenTelemetry Collector, container and application logs are enriched with Kubernetes metadata out-of-the-box making filtering, grouping and logs analysis easier and more efficient.
