uwsgi moduleedit

Warning

This functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.

This is the uwsgi module. By default collects the stats metricset, using StatsServer.

Module-specific configuration notesedit

The uWSGI module has these additional config options:

hosts
host URLs to get data from (e.g: tcp://127.0.0.1:9191). Can obtain data from 3 types of schemes: tcp (tcp://ip:port), unix socket (unix:///tmp/uwsgi.sock) and http/https server (http://ip:port)

Dashboardedit

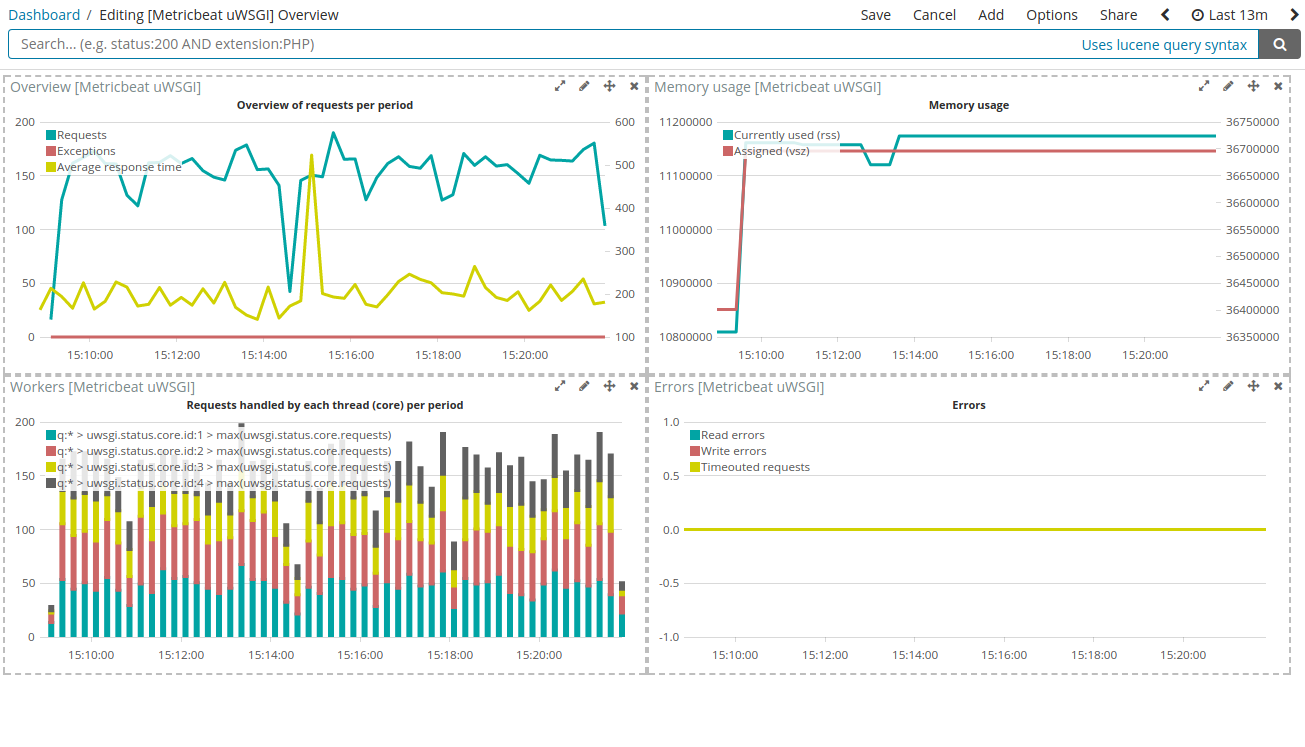

The uwsgi module comes with a predefined dashboard. For example:

./images/uwsgi_dashboard.png

Example configurationedit

The uwsgi module supports the standard configuration options that are described in Specify which modules to run. Here is an example configuration:

metricbeat.modules:
- module: uwsgi
  metricsets: ["status"]
  enable: true
  period: 10s
  hosts: ["tcp://127.0.0.1:9191"]

Metricsetsedit

The following metricsets are available:
