Preconfigured connectorsedit

If you are running Kibana on-prem, you can preconfigure a connector to have all the information it needs prior to startup by adding it to the kibana.yml file.

Elasticsearch Service provides a preconfigured email connector but you cannot create additional preconfigured connectors.

Preconfigured connectors offer the following benefits:

Require no setup. Configuration and credentials needed to run an action are predefined, including the connector name and ID.
Appear in all spaces because they are not saved objects.
Cannot be edited or deleted.

Create preconfigured connectorsedit

Add xpack.actions.preconfigured settings to your kibana.yml file. The settings vary depending on which type of connector you’re adding.

This example shows a valid configuration for a Slack connector and a Webhook connector:

  xpack.actions.preconfigured:
    my-slack1:
      actionTypeId: .slack
      name: 'Slack #xyz'
      secrets:
        webhookUrl: 'https://hooks.slack.com/services/abcd/efgh/ijklmnopqrstuvwxyz'
    webhook-service:
      actionTypeId: .webhook
      name: 'Email service'
      config:
        url: 'https://email-alert-service.elastic.co'
        method: post
        headers:
          header1: value1
          header2: value2
      secrets:
        user: elastic
        password: changeme

	The key is the connector identifier, `my-slack1` in this example.
	`actionTypeId` is the action type identifier.
	`name` is the name of the preconfigured connector.
	`config` is the configuration specific to the connector type.
	`secrets` is the sensitive configuration, such as username, password, and keys, specific to the connector type.

Sensitive properties, such as passwords, can also be stored in the Kibana keystore.

Built-in preconfigured connectorsedit

Kibana provides the following built-in preconfigured connectors:

View preconfigured connectorsedit

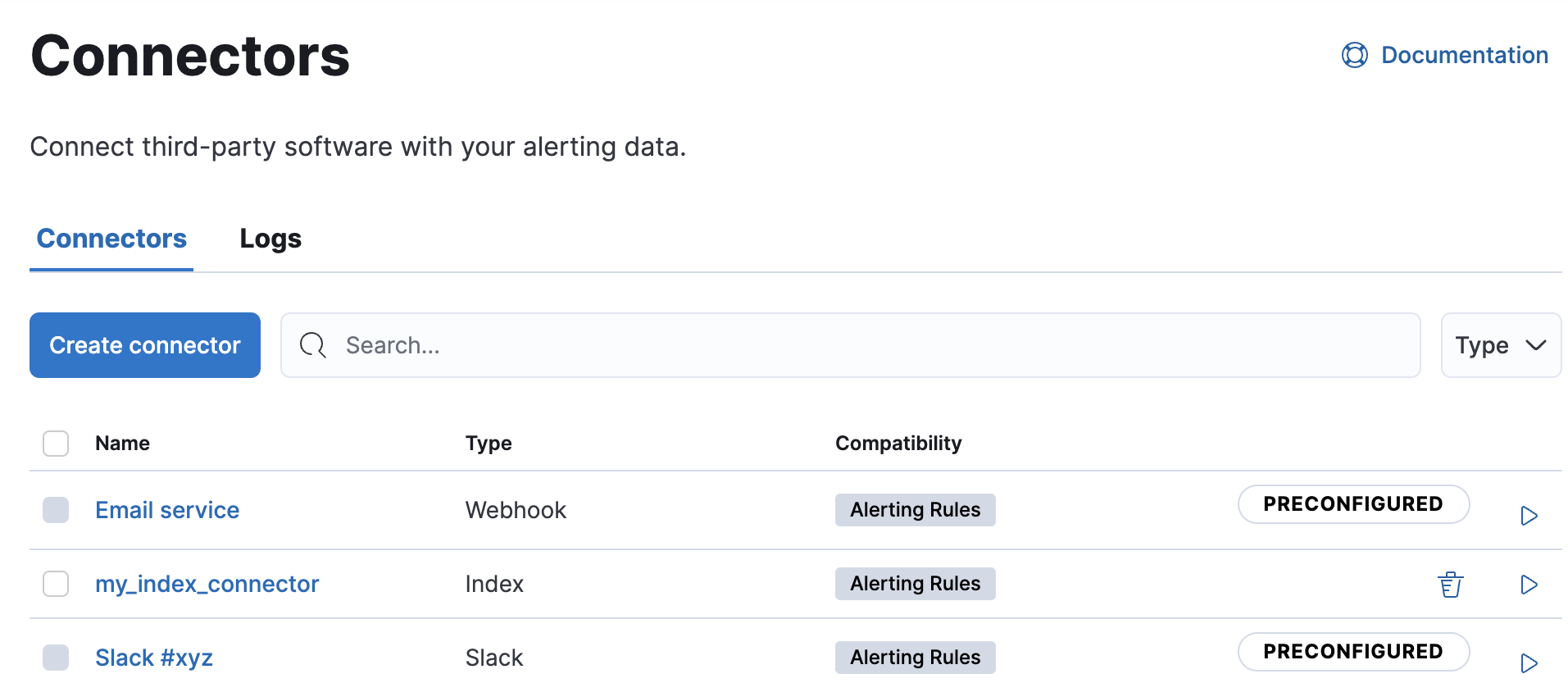

When you open the main menu, click Stack Management > Connectors. Preconfigured connectors appear regardless of which space you are in. They are tagged as “preconfigured”, and you cannot delete them.

Connectors managing tab with pre-configured

Clicking a preconfigured connector shows the description, but not the configuration.

Webhook preconfigured connector exampleedit

The following example creates a webhook connector with basic authentication:

xpack.actions.preconfigured:
  my-webhook:
    name: preconfigured-webhook-connector-type
    actionTypeId: .webhook
    config:
      url: https://test.host
      method: post
      headers:
        testheader: testvalue
      hasAuth: true
    secrets:
      user: testuser
      password: passwordkeystorevalue

	The web service request URL. If you are using the `xpack.actions.allowedHosts` setting, make sure the hostname is added to the allowed hosts.
	The HTTP request method, either `post`(default) or `put`.
	A set of key-value pairs sent as headers with the request.
	If `true`, this connector will require values for `user` and `password` inside the secrets configuration. Defaults to `true`.
	A valid user name. Required if `hasAuth` is set to `true`.
	A valid password. Required if `hasAuth` is set to `true`. NOTE: This value should be stored in the Kibana keystore.

SSL authentication is not supported in preconfigured webhook connectors.
